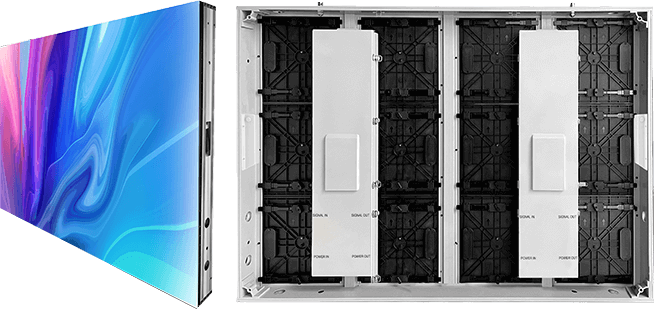

Gsurface-III Series

Outdoor Fixed Installation Product

Contact us

Cabinet Material

Profile Aluminum

Previous Cabinet

55 kg/㎡, thickness 150mm

Gsurface-III Series

28.9kg/㎡, thickness 100mm

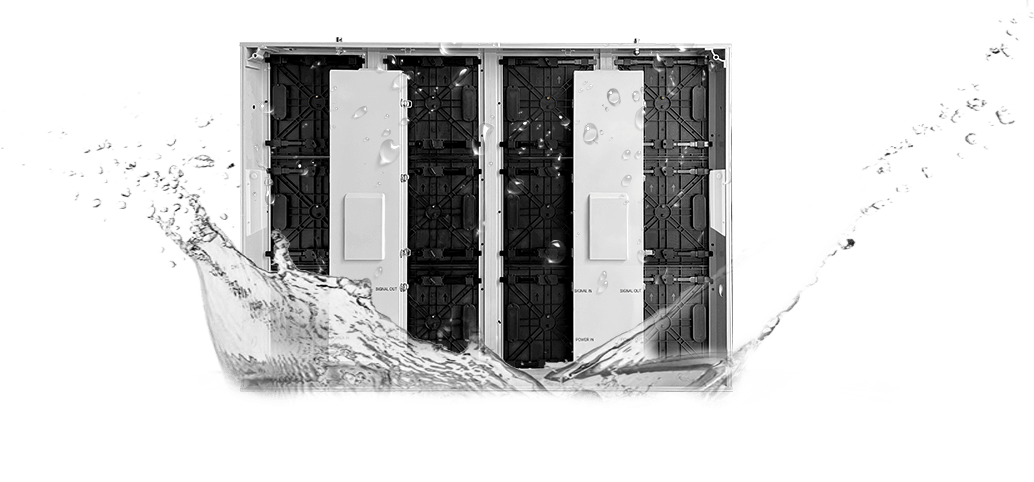

Triple Waterproof

Waterproof cabinet frame

Waterproof module

Waterproof power box

01

100% Front & Rear Maintenance

02

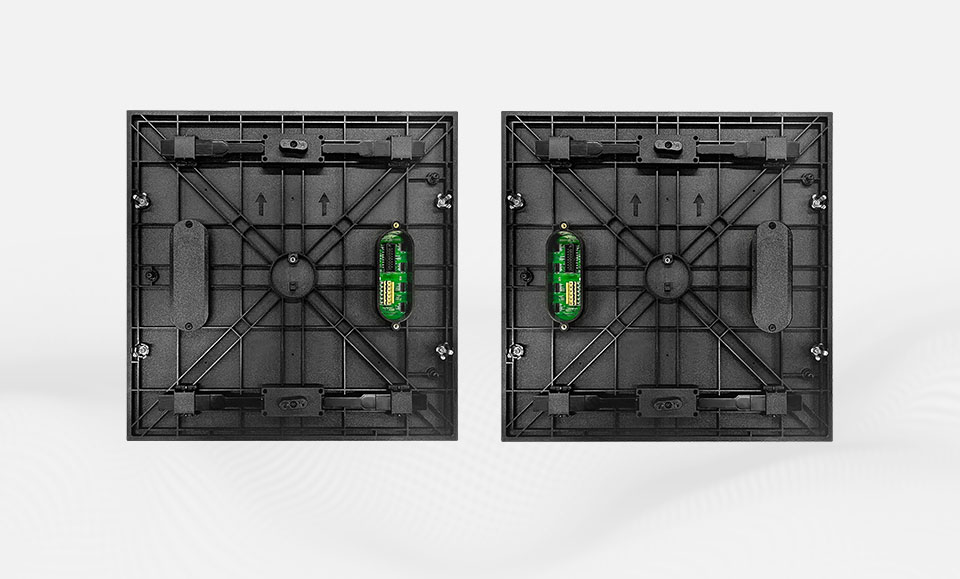

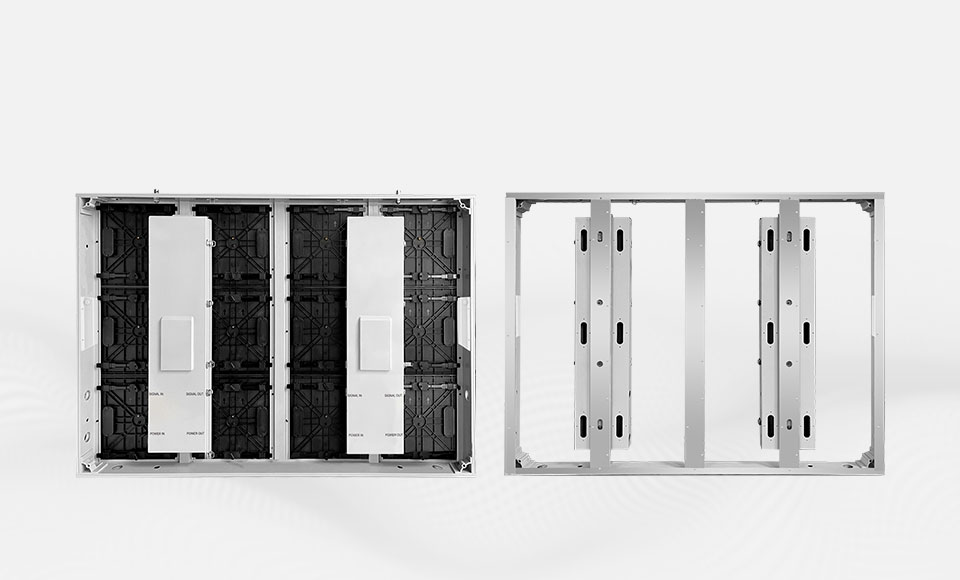

Flexible Location for Modules

The same module can be placed on either the right or left side.

03

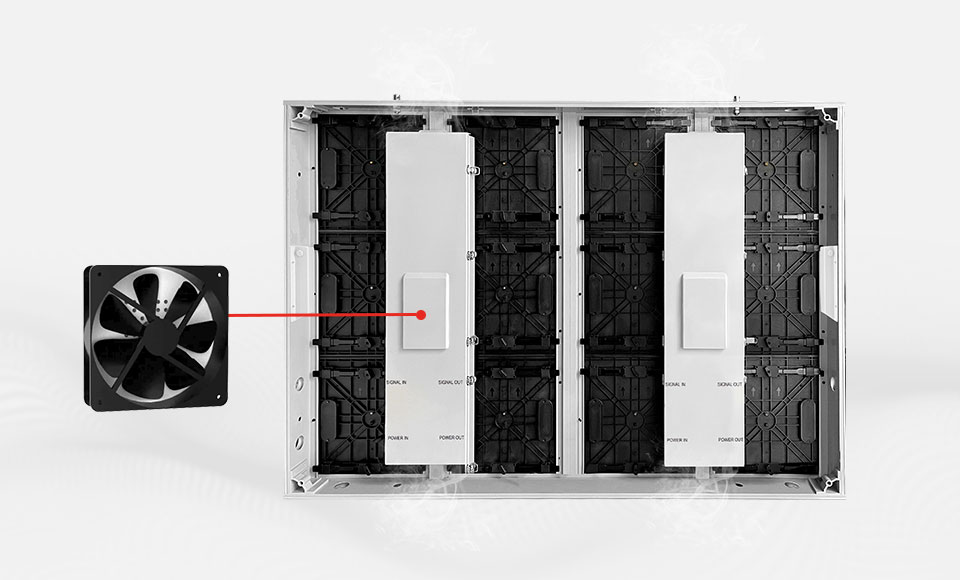

Excellent Heat Dissipation

AC is not needed

Special heat dissipation module design+cabinet fan

Longer lifespan

04

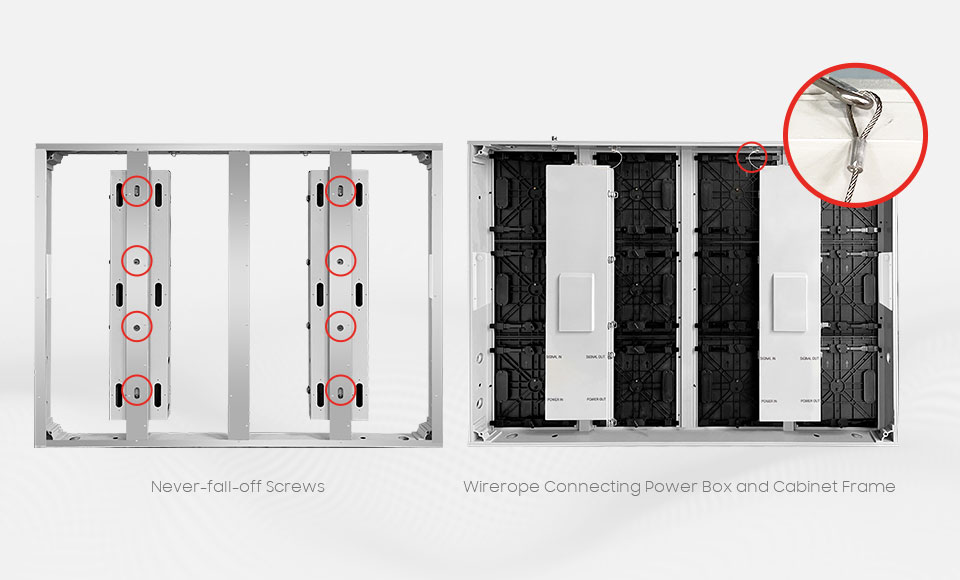

Solid & Safe

Screws that fix the power box onto the cabinet don't fall off;

The wirerope makes sure the power box won't fall off.

05

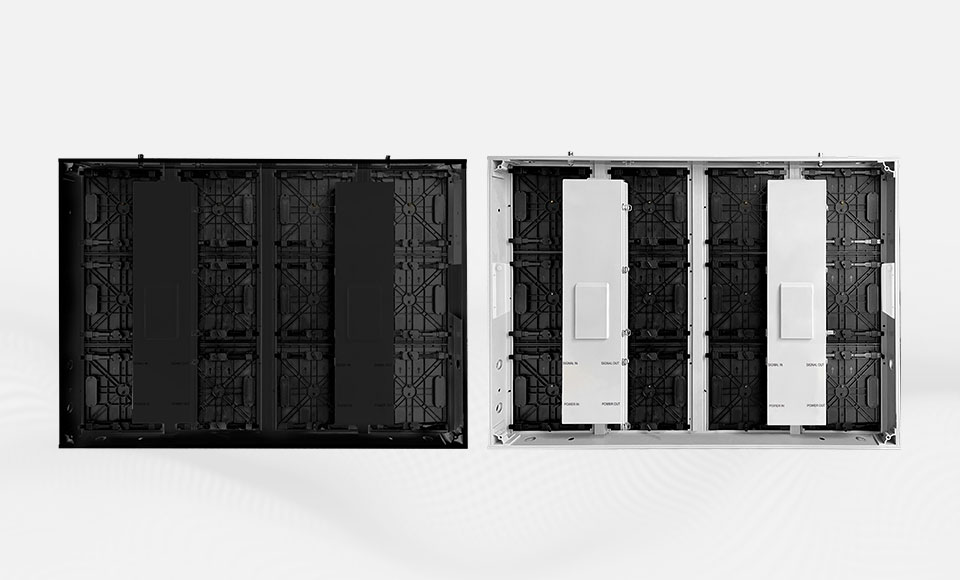

Multiple Cabinet Colors

Standard cabinet color: white

Any other colors are doable

06

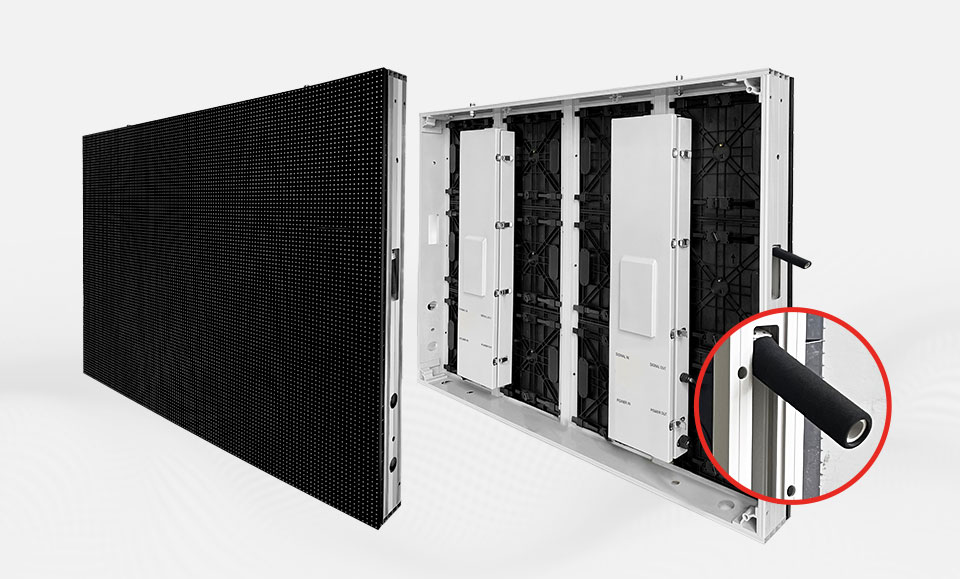

Cabinet Handles

Easy for moving the cabinets

07

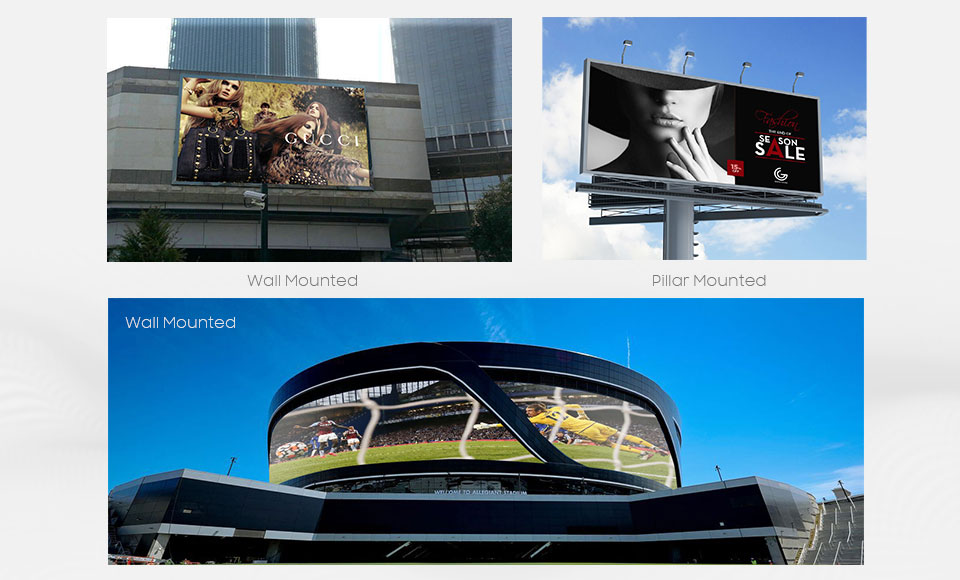

Multiple Installation Ways

Straight wall mounted

Curve wall mounted

Pillar mounted

08

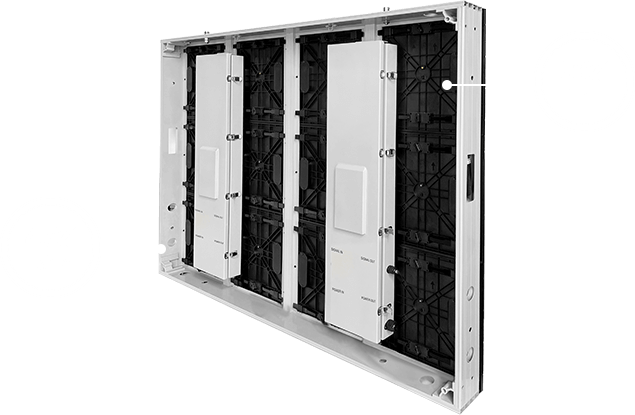

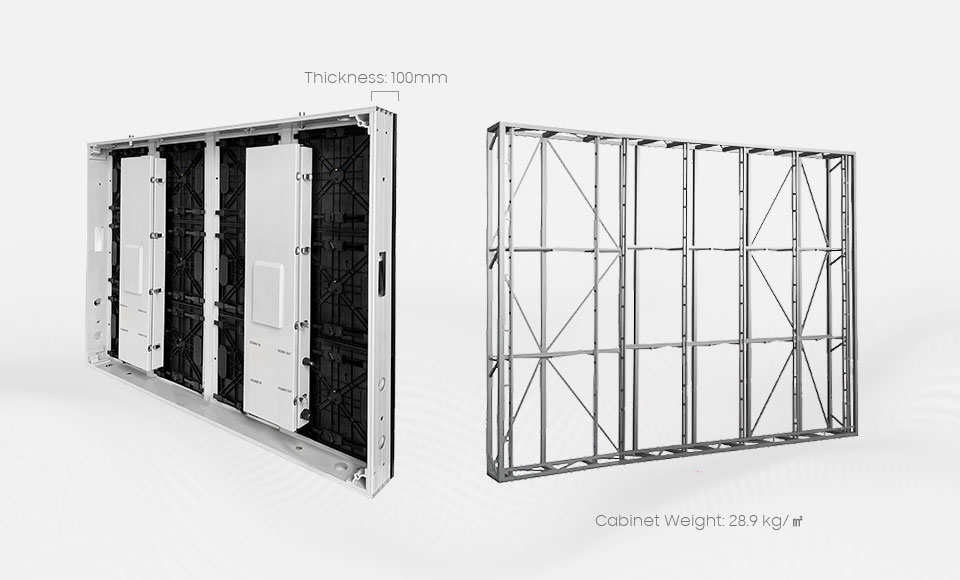

Lighter&Thinner Cabinet = Lower Cost for Steel Structure

Technical parameter

SMD DIP
Product P5.92 P6.67 P8 P10 P10 P16
Pitch 5.92mm 6.67mm 8mm 10mm 10mm 10mm

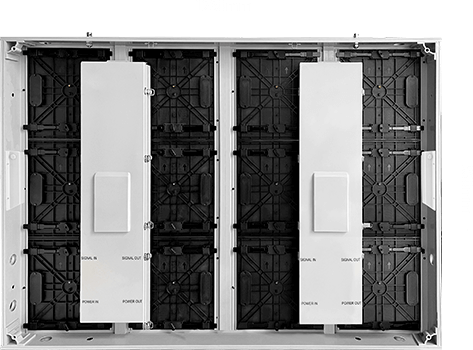

Cabinet Size


W1280*H960*T100mm (Standard)
W1280*H640*T100mm
W640*H960*T100mm
W640*H640*T100mm



W1280*H960*T105mm (Standard)
W1280*H640*T105mm
W640*H960*T105mm
W640*H640*T105mm


Module Size 320*320mm
Cabinet Material Profile Aluminum
Cabinet Weight 35.5kg 35.5kg 35.5kg 35.5kg 37.5kg 37.5kg
Cabinet Maintenance 100% Front & Rear
